MWVPD
- Supply and extraction of isothermal, cooled, or heated air
- Good induction performance
- High number of air changes
- Applicable in modular ceiling systems
- Good aerodynamic properties
- Low noise level
- Return grille can be fitted with a filter
- Filter easily replaceable via hinged front panel
- PU insulation Fire Class B3
Product Description
- MWVPD-4 – Supply grille with side connection, four-way discharge
- MWVPD-3 – Supply grille with side connection, three-way discharge
- MWVPD-2 – Supply grille with side connection, two-way discharge
- MWVP-4 – Supply grille with top connection, four-way discharge
- MWVP-3 – Supply grille with top connection, three-way discharge
- MWVP-2 – Supply grille with top connection, two-way discharge
- MWVPD-R – Return grille with side connection
- MWVPD-RF – Return grille with side connection and filter
- MWVP-R – Return grille with top connection
- MWVP-RF – Return grille with top connection and filter
Technical Data
- Visible area RAL 9010
- Remaining galvanized steel sheet
- Other colors available upon request
WID
- WID Perforated ceiling grille
- WID-4 Four-way discharge
- WID-3 Three-way discharge
- WID-2 Two-way discharge
- WID-R Return version
- MPV Module plate
- WWM Mounting set
- WKDV Supply plenum
- WKDVI Internally insulated supply plenum
- WKRV Return plenum
Properties
- Supply and return of isothermal, cooled, or heated air
- Good induction performance
- High air exchange rate
- Applicable in modular ceiling systems
- Adjustable front plate
- No coanda effect required
- Mixing within the grille
- Good aerodynamic properties
- Low noise level
- Removable front plate
- PU insulation Fire class B3
WPD
- WPD-4 Four-way blowing
- WPD-3 Three-way blowing
- WPD-2 Two-way blowing
- WPD-R Return version
- MPV Modular plate
- WWM Mounting set
- WKDV Supply plenum
- WKDVI Internally insulated supply plenum
- WKRV Return plenum
Properties
- Supply and exhaust of isothermal, cooled or heated air
- Good inducing effect
- High number of air changes
- Applicable in modular ceiling systems
- Measurement nipple for balancing
- Good aerodynamic properties
- Low noise level
- PU insulation Fire class B3
WISL
- WISL – Waterloo inspection hatch
- P – Perforated internal section
- B – Solid internal section (optional)
- VF-P200 – White G2 wire filter (optional)
Mounting
- ST – Blind screw mounting (standard)
- MB – Mounting bracket (optional)
Finish
- RAL9010
- Other colors available on request
Dimensions
- Minimum 300 x 300 mm
- Maximum 800 x 600 mm
- Standard increments of 100 mm (intermediate sizes also available)
- Larger sizes available on request
WTF
- WTF Square swirl diffuser
- RWTF Round swirl diffuser
- MWTF Swirl diffuser in modular version 600×600
- TKDV Plenum
- TKDVI Internally insulated plenum
- TKRV Return plenum
- H Connection rim
- T Crossbar for duct mounting
Properties
- Supply and exhaust of isothermal, cooled, or heated air
- Good induction effect
- Applicable in modular ceiling systems (MWTF)
- Effective performance without ceiling
- Good aerodynamic properties
- Low noise level
- Good mixing with room air
- PU insulation Fire class B3
WDVV
- Plenum box
- Manual drive
- Motor drive
- Bimetal drive
- RAL colors
- Module plate
- Bimetal drive
- Adjustable throw distance, depending on the temperature of the air supply
- No additional power supply needed
CS
AIRCELL M-SERIE
- Aircell M-series Plastic ceiling grille
- BM Cover segments for
- P Plastic plenum
- OAK Plastic volume control
- R400/315 Plastic transition piece
- WKA Galvanized steel plenum
- WKAI Galvanized steel plenum internally insulated
- OAC Aluminum volume control
Features
- Supply and exhaust of isothermal, cooled or heated air
- Suitable for wet and aggressive environments
- Maximum air supply temperature 50 °C
- Applicable in modular ceiling systems
- Entirely made of plastic (including plenum P)
- Easy to remove grille
- Light and strong
- Fire class B3 for all products
Finish
- Grille: White
- Plastic plenum: Black
- Plastic volume control: Black
- Steel plenum: Electrolytically galvanized
- Volume control for steel plenum: Bright aluminum
DF
- DF Louver ceiling diffuser with flange edge, horizontal discharge
- DE Louver ceiling diffuser without flange edge, horizontal discharge
- DFA Adjustable louver ceiling diffuser with flange edge, horizontal or vertical discharge
- KDV(I) Supply plenum for DF/DE (insulated/non-insulated)
- KRV(I) Return plenum for DF/DE (insulated/non-insulated)
- R Transition piece to round connection
- PB(I) Plenum for DFA (insulated/non-insulated)
- OBSS Volume control operated with an Allen key
- OBLL Volume control operated with a lip
- MPD Module plate for DF
- WM Mounting set for DF
Properties
- Supply and exhaust of isothermal, cooled, or heated air
- Good inducing effect
- Suitable for modular ceiling systems
- Good aerodynamic properties
- Low noise level
- Long throw
- Removable inner part
- PU insulation Fire class B3
Finishing
- RAL 9010
- Galvanized steel plenum
- Other colors available on request
RWK
- RWK Round ceiling supply diffuser
- RWK-R Round ceiling return diffuser
- UKDV Supply plenum
- UKDVI Internally insulated supply plenum
- UKRV Return plenum
Features
- Supply and exhaust of isothermal, cooled, or heated air
- High induction effect
- High air exchange rate
- Good aerodynamic properties
- Low noise level
- No Coanda effect required
- Removable front plate
- Adjustable front plate
- PU insulation, fire class B3
Finish
- RAL 9010
- Galvanized steel plenum
- Other colors available upon request
RWI
- RWI Round perforated ceiling supply diffuser
- RWI-R Round perforated ceiling return diffuser
- UKDV Supply plenum
- UKDVI Internally insulated supply plenum
- UKRV Return plenum
Features
- Supply and exhaust of isothermal, cooled, or heated air
- Good inducing effect
- High number of air changes
- Effective operation without a ceiling
- Good aerodynamic properties
- Low noise level
- Adjustable front plate
- Removable flat front plate
RWV
- RWV Round ceiling supply diffuser
- RWV-R Round ceiling return diffuser
- UKDV Supply plenum
- UKDVI Supply plenum internally insulated
- UKRV Return plenum
Features
- Supply and return of isothermal, cooled, or heated air
- Suitable for high ceilings
- Adjustable horizontal or vertical airflow
- High induction efficiency
- Long throw distance
- Excellent aerodynamic properties
- Low noise level
- Removable front plate
- Adjustable front plate
- PU insulation Fire class B3
Finish
- RAL 9010
- Galvanized steel plenum
- Other colors available upon request
AV – KAV – ZV
- ZV Steel air supply diffuser
- AV Steel air exhaust diffuser
- KAV Plastic air exhaust diffuser
Features
- Supply and exhaust of isothermal, cooled, or heated air
- Suitable for sanitary and wet areas
- Small air volumes
- Easy to install
- Well adjustable
Finish
- White plastic
- Steel RAL 9010
WID-FR
- Standard finish is RAL 9010
- Suitable for extraction above suspended ceiling
- Diffuser can be equipped with a cover plate to prevent visibility
- Applicable in modular ceiling systems
- Good aerodynamic properties
- Low noise level
Product description
- WID-FR Perforated ceiling diffuser
- WID-FR-A Perforated ceiling diffuser with cover plate
Finish
- Front plate RAL 9010
- Cover plate black
- Other colors available upon request
Dimensions
External size of front plate is 595 x 595 mm

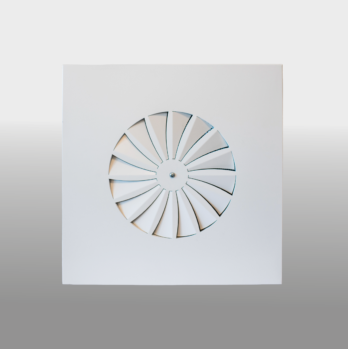

WSDT
- WSDT diffuser with curved blade
- WSRT Ø diffuser with curved blade
- SDSS(I) supply plenum
- SDSSE Ø return plenum
- SDCS(I) Ø supply plenum
- SDCSE Ø return plenum
Features
- Supply and exhaust of isothermal, cooled, or heated air
- Good induction effect
- Low noise level
- Applicable in modular ceiling systems
- Good performance without ceiling
- Good aerodynamic properties
Finishing
- RAL 9010
- Galvanized steel plenum
- Other colors available upon request
SDV(B)
- High capacity
- Airflow direction can be changed using reversible plastic blades
- Plenum with side or top connection available
- Rapid induction of supply air
- Suitable for higher spaces
Mounting
- Sizes 300 to 600: 1 central screw fixation
- Sizes 625 to 825: 4 screws
Product description
- SDVSA – Swirl diffuser with a square front plate featuring a radial slot pattern
- SDVCA – Swirl diffuser with a round front plate featuring a radial slot pattern
- SDVSB – Swirl diffuser with a square front plate featuring a star-shaped slot pattern
- SDVCB – Swirl diffuser with a round front plate featuring a star-shaped slot pattern
- S – Plenum with side connection
- V – Plenum with top connection
AIRCELL 2000-SERIE
- Aircell 2300 plastic ceiling diffuser
- Aircell 2600 plastic ceiling diffuser
- B Cover segments for three- or two-sided discharge
- PK plastic plenum
- OAK plastic volume control
- R400/315 plastic transition piece
- WKA galvanized steel plenum
- WKAI internally insulated galvanized steel plenum
- OAC aluminum volume control
Features
- Supply and exhaust of isothermal, cooled, or heated air
- Applicable in wet and aggressive environments
- Maximum air supply temperature 50 °C
- Suitable for modular ceiling systems
- Entirely made of plastic (including plenum P)
- Easy to remove diffuser
- Lightweight and strong
- Fire class B3 for all products
Finishing
- Diffuser: White
- Plastic plenum: Black
- Plastic volume control: Black
- Steel plenum: Electro-galvanized
- Volume control for steel plenum: Natural aluminum
HEPA / CLEANROOMS
- Pharmaceutical production and biotechnology laboratories
- Hospitals and healthcare facilities
- Optical industries
- Food and beverage processing
TripleAir FLUIDSEAL TERMINAL HOOD housings are made from black steel and finished with an epoxy powder coating in white RAL9010. A differential pressure port is included for room-side testing, with suspension loops on the top for hanging. The unit features concealed grille mounting and can be equipped with spin cap, variable air volume, 4-way throw, or perforated plate diffusers. Diffuser installation is via the filter clamp bar, accessible through a removable core. Filter installation is performed from the clean side of the room and can be easily completed by one person.
TripleAir FLUIDSEAL filters feature an integrated groove filled with a non-outgassing polyurethane gel, ensuring an airtight seal with the housing. Available in classification ranges from E11-U17 according to EN1822.
